1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF

Name: 104 Inch Round Oled Screen Round AMOLED Panel 340340 Dots SPI Interface Driving IC CO5300AF
Brand: HuaXin
Price: 6.4 USD

Quality 1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF for sale

Brand Name : HuaXin

Model Number : ESHX1041535A0

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $6.4

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display technolog : AMOLED screen

Name : Amoled panel

size : 1.04 inch

resolution : 340*340

interface : SPI

brightness : 600C/D

Driving IC : CO5300-AF

Contact Now

1.04 Inch Round AMOLED Display Module

High-resolution 340×340 dot AMOLED display with SPI interface and CO5300-AF driving IC, offering 600 nits brightness and all-view angle visibility.

Key Specifications

Attribute	Value
Display Technology	AMOLED screen
Size	1.04 inch
Resolution	340×340 dots
Interface	SPI
Brightness	600 cd/m²
Driving IC	CO5300-AF

Technical Parameters

Part No.	ESHX1041535A0
Outline Size	29.25(W) × 28.9966(H) mm
Active Area Size	26.35 × 26.53 mm
View Angle	All

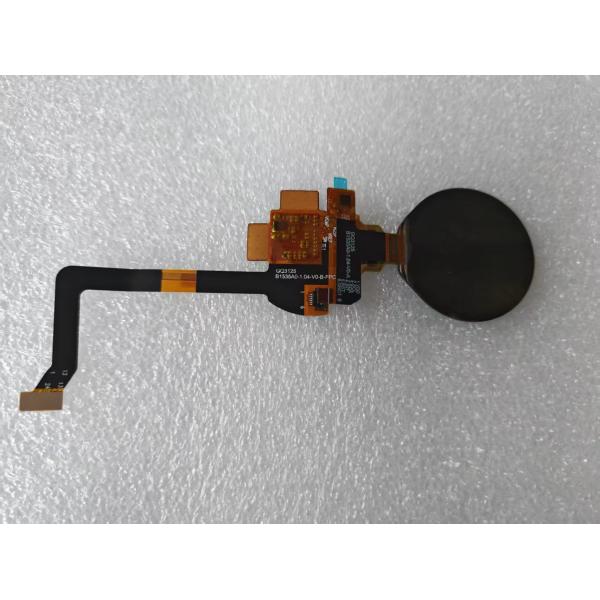

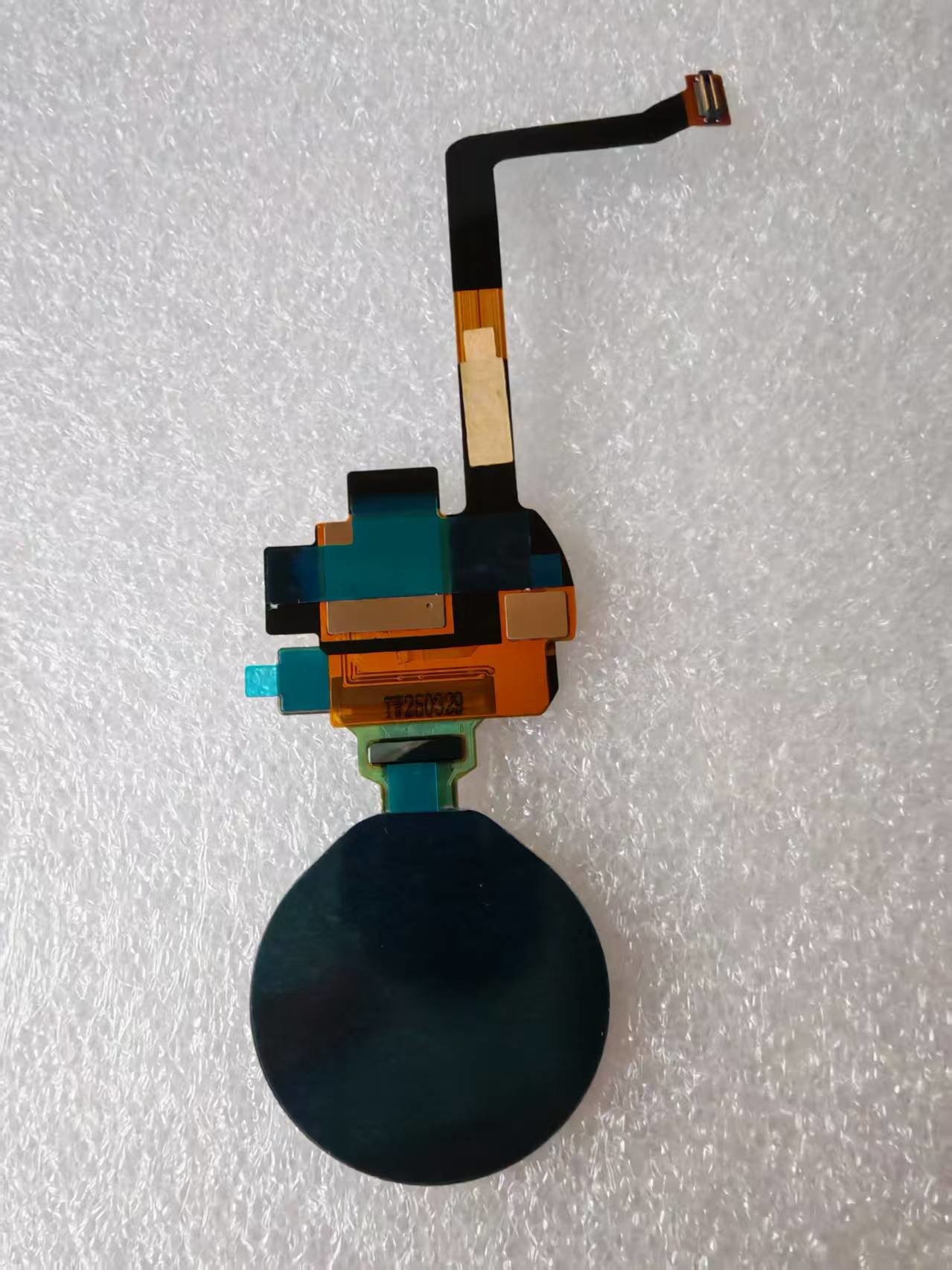

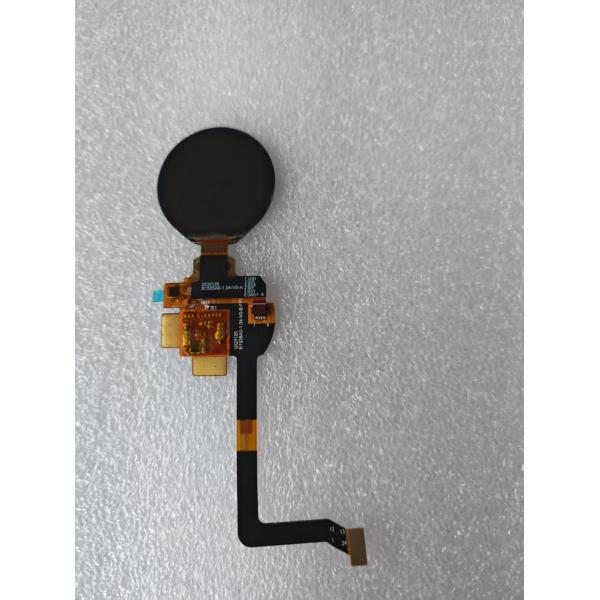

Product Images

1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF

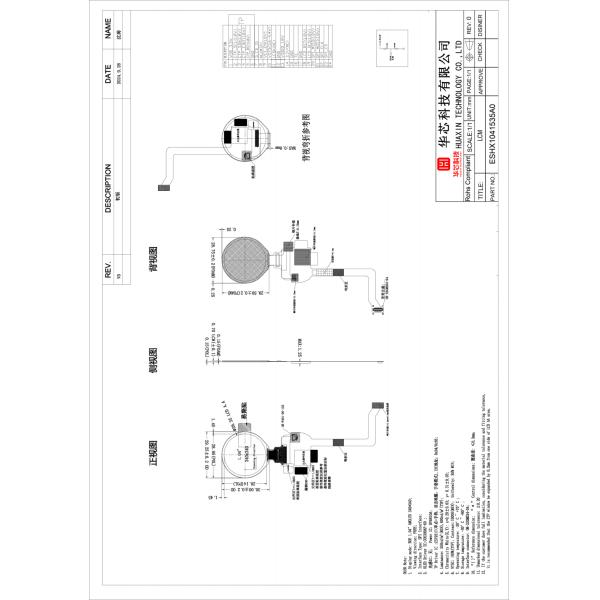

Pin Definition Diagram

AMOLED Technology Overview

Advantages

Perfect blacks & infinite contrast ratio
Vibrant colors with wide gamut
Ultra-fast response times
Flexible and thin design capabilities
Energy efficient operation
Superior viewing angles
Excellent HDR performance

Considerations

Higher cost compared to LCD/TFT
Shorter operational lifetime
Lower peak brightness in sustained use

Power Efficiency Comparison

Content-dependent efficiency: AMOLED consumes power per pixel, saving energy on dark content
Brightness control: Dynamic pixel brightness adjustment improves low-light efficiency
Size impact: More efficient for smaller displays where pixel count is lower
Backlight difference: LCD/LED require constant backlight regardless of content

Manufacturer Advantages

Cost-effective inland manufacturing base
Advanced automated production equipment
20+ years of LCD industry expertise
Custom design capabilities
ISO 14001, ISO 9001, IATF 16949, and SGS certified

Huaxin Technology (Enshi) Co., LTD

Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Registered capital: 20 million
500+ employees (10% R&D, 15% QC)
Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs
LCM capabilities: COB, TBA, COG, TP, LED backlight

Production Capacity

Product	2021	2022	2023	2024	2025
LCD (k logs/day)	4.5	9	9	9	9
LCM (k pieces/day)	70	150	300	450	450
Backlight (k pieces/day)	100	200	300	500	500
OLED (k pieces/day)	10	20	30	40	50

Typical Applications

Smartphones and tablets
Wearable devices (smartwatches)
AR/VR headsets
Television and monitors
Automotive displays
Medical equipment and smart home devices
