Home > FHD TFT Display >

5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D

Brand Name : HuaXin

Model Number : HX598AH003-01A

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1~1000

Price : $14.28~$13.28

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : FHD tft

Name : tft screen

Display size : 5.98 inch TFT LCD

Resolution : 1440×2560

interface : 50 Pins MIPI

Brightness : 400C/D

view angle : all

Contact Now

5.98 Inch High Resolution TFT Display
Product Specifications
Attribute Value
Display Technology FHD TFT
Name TFT Screen
Display Size 5.98 inch TFT LCD
Resolution 1440×2560
Interface 50 Pins MIPI
Brightness 400C/D
View Angle All
Technical Parameters
Part No. HX598AH003-01A
Display Mode 5.98 inch TFT display
Outline Size (mm) 76.72 × 139.62
AA Size (mm) 74.52 × 132.48
Display Dots 1440×2560
View Angle ALL
Brightness 400C/D
Interface 50 Pins MIPI
Working Temperature -20~70°C
Storage Temperature -30~80°C

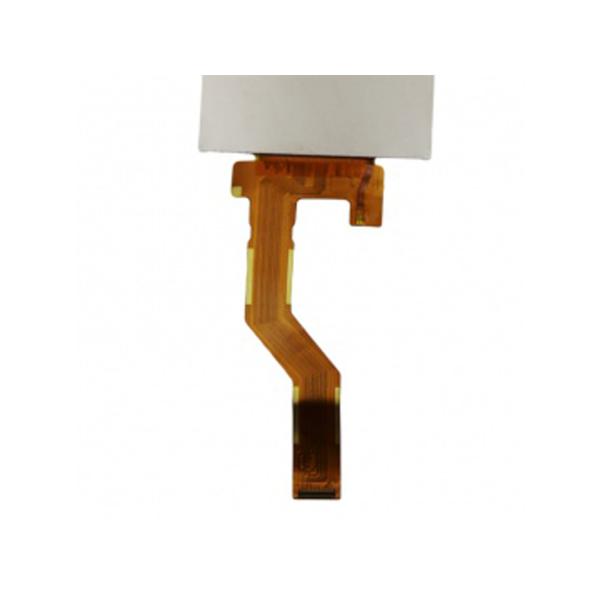

Product Images
5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D 5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D 5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D 5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D
TFT Product Knowledge
TFT substrate input and CF substrate input flow chart:
5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D
TFT structure diagram:
5.98 Inch FHD TFT Display 1440×2560 50 Pins MIPI Interface Driving IC 400c/D
Huaxin Advantages
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product
Our certificates:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Huaxin Technology (Enshi) Co., LTD
- Hubei.Enshi
- Date of foundation: 2009
- High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
- LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB, TBA, COG, TP, LED backlight and other series
- Register capital: twenty million
- Current staff: 500+
- RD accounts for 10%
- QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
  • Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
  • Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions.
  • Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
  • Size and Flexibility: TFT displays can be manufactured in various sizes, from small screens to large panels.
  • Backlighting: Most TFT displays require a backlighting system, such as LED backlighting.
  • Wide Applications: Suitable for various industries and devices.
Limitations of TFT Displays
  • Limited Viewing Angles: Compared to some other technologies.
  • Limited Contrast Ratio: May not achieve the deepest blacks.
  • Backlighting and Power Consumption: Requires backlight which consumes power.
  • Response Time and Motion Blur: May show motion blur in fast-moving images.
  • Limited Flexibility: Typically rigid compared to newer flexible displays.
  • Limited Color Gamut: May not cover the full color spectrum.
